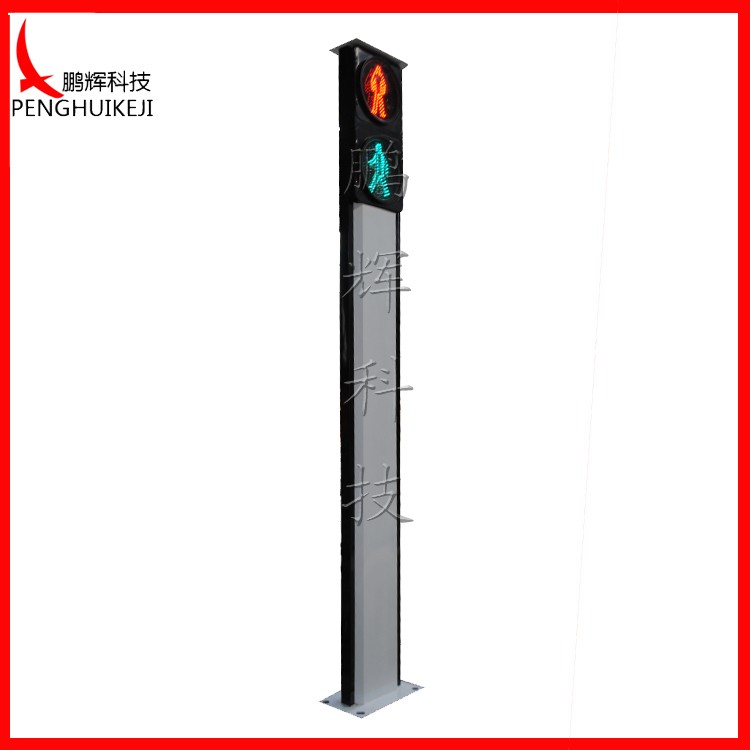

Integrated signal lamp
The product description
Pedestrian signal lights, for the reds, who is under dynamic green, split screen display, lamp shell and a connection rod body, plastic spraying treatment on the surface, the novel generous.
Product features
The indicators in line with the GB14887-2011 of the People's Republic of China《Road traffic signals》Standard.
Super bright imported four elementsLED the wick, uniform colour, perspective, viewing distancefarAnd long service life.
Adopt silicon rubber seal, dustproof, waterproof, flame retardant, effectively put an end to all kinds of hidden dangers.
And the number
gauge G:phiIn 300,phiIn 400,
Lamp shell material:Hot galvanized, plastic spraying
Installation method:Vertical loading
High degree of:According to the request
Light life:100000 hours or more
Center wavelength:Red 625 nm, yellow 590 nm, 505 nm green
Resistant temperature:To 40 ℃~+ 85 ℃
Working voltage:DC12V / 24 V AC (220 + / - 20%) V (choose one)
Visual Angle:Acuity 30 °
Visual range:≥500m
Warm performance:Air relative humidity of 5%~95% (without condensate)
Insulation resistance:> 10M omega.
Wind loading:145m/h
Enclosure protection grade:IP53
